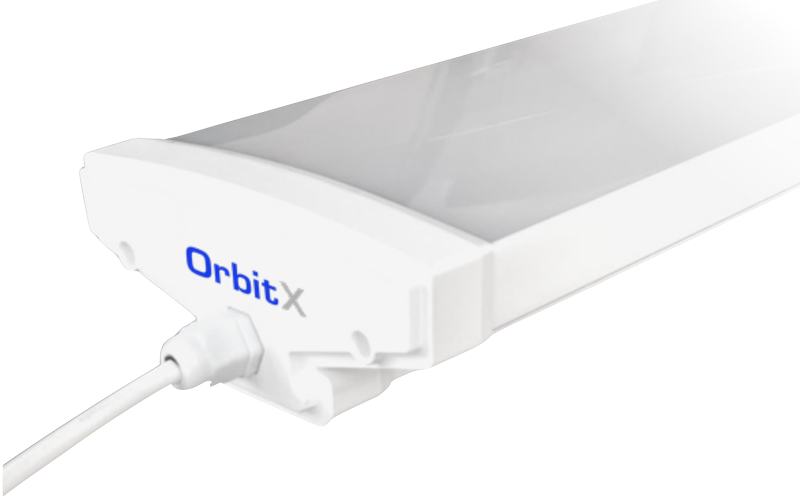

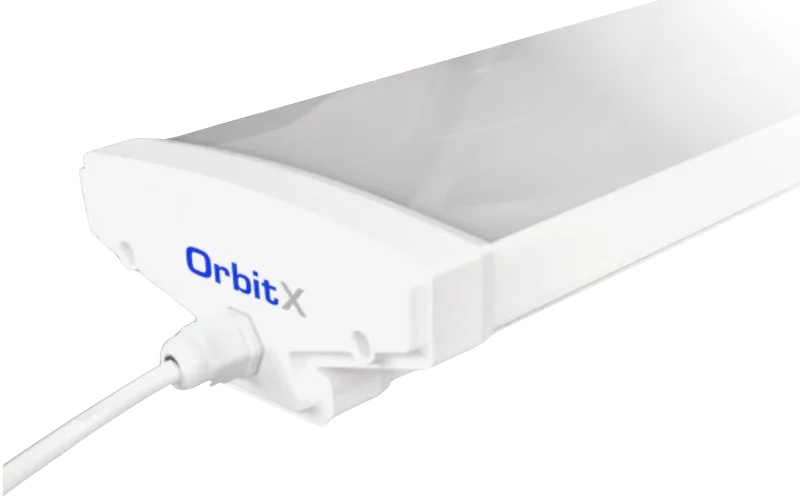

Jupiter

INTEGRATED IP65 LINEAR LED LIGHT

Dust proof, moisture proof and vapour proof, the Jupiter is built on OrbitX Direct Drive technology with the light source onboard — ideal for highbay applications.

Download Specs Back to Products
Jupiter

Guarantee & Lifetime

  • Operational Guarantee: 8 years (365d x 24h)
  • Light Output Guarantee: 5 years (365d x 24h)
  • Nominal Lifetime (L70): 70,000 hours
  • Testing Standards: IES LM-80, TM-21

Photometric Data

  • Luminous Efficacy: 135 lm/W
  • Correlated Colour Temperature (CCT): 5000K (options available)
  • Colour Rendering Index (CRI): 83
  • Gamut Area Index (GAI): 96
  • Light Quality: Type A compliant (Lighting Research Centre, New York)
  • Beam Angle: 120°
  • Stroboscopic Effect (100Hz): 80% flicker free (complies with OHS and MHS Act)

Electrical Data

  • Power: See Configurations table
  • Power Factor: >0.98
  • Operating Voltage: 220-240V AC
  • Minimum Sustained Voltage: No minimum limit, operational from 150V
  • Maximum Sustained Voltage: 250V for 2 minutes
  • On/Off Switching: Unlimited
  • Delay to Full Brightness: Immediate

Temperature

  • Max Ambient Temperature (T Ambient): +35°C
  • Min Ambient Temperature (T Ambient): -40°C

Safety & Compliance

  • Risk of Breakage: Low, polycarbonate housing extruded to 1mm (no glass)
  • Electrical Standards: IEC60598-1, IEC60598-2-5 compliant
  • Surge Protection: 1.5kV
  • Fire Rating: UL-94 V0 compliant (no flaming droplets)
  • IP Rating: IP65
  • SABS: Safety tests passed

Interference Compliance

  • WiFi, Barcode Scanner, Radio Frequency: No interference
  • Standards: IEC 61547, SANS 215 (CISPR15) compliant
  • Total Harmonic Distortion: IEC 61000-3-2 Class D Compliant

Additional Options

  • Optional Battery Backup: Output 1000 lm for 4h; 6h charge; 1y guarantee
  • Optional Variable Switching: 2 Live inputs, 1 Neutral (e.g., 80W split into 20W/60W/80W)

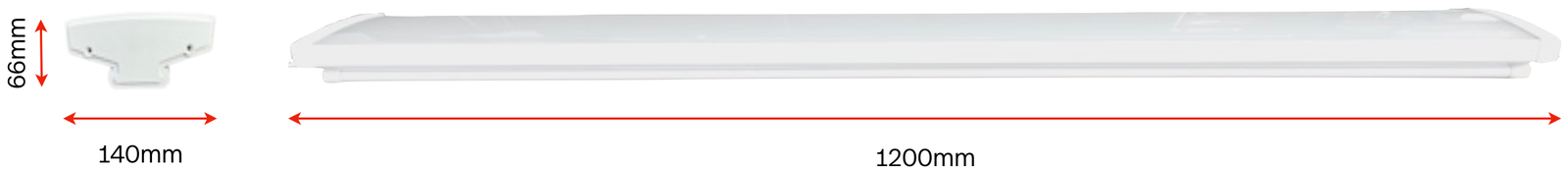

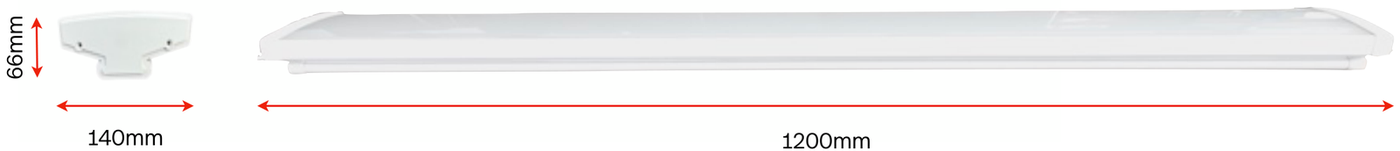

Dimensions

Jupiter dimensions

Graphs

Polar Candelas Distribution

Intensity vs Angle (0° H / 90° H)

0°10°20°30°40°50°60°70°80°90°100°110°120°130°140°0.0000.8331.6672.5003.3334.1675.0000° H90° H

Rate of Reduction in Light Output

Time (×1000 h) vs Lumen Output (%)

01020304050607080020406080100Time (1000 hours)Lumen Output (%)L70

Light source SPD

Wavelength (nm) vs Relative Power

36048561073500.250.50.751Wavelength (nm)P (relative)

Light Survival Rate

Time (×1000 h) vs Light Survival (%)

020406080100020406080100Time (1000 hours)Light Survival (%)

Type A Lighting*

Colour Rendering Index (CRI) vs Gamut Area Index (GAI)

020406080100020406080100Colour Rendering Index (CRI)Gamut Area Index (GAI)OrbitXCRI 83, GAI 96Type A Lighting

*Type A Lighting as defined by the Lighting Research Centre, New York

Configurations & Performance

LengthPower (W)Luminous Flux (lm)
1200 mm202500
1200 mm405000
1200 mm607500
1200 mm8010000
1200 mm10012500
1200 mm12015000
1200 mm14017500
1200 mm16020000
1200 mm18022500
1200 mm20025000

Specification tolerance: ±10%

Model Codes & Packaging

Model CodeLength (mm)Power RatingUnits/BoxBox Dimensions (l × w × h mm)Weight (kg)IES Files
OXJT1200205120020 W41280 × 185 × 1856.56Available on request
OXJT1200405120040 W41280 × 185 × 1856.71Available on request
OXJT1200605120060 W41280 × 185 × 1856.86Available on request
OXJT1200805120080 W41280 × 185 × 1857.04Available on request
OXJT120010051200100 W41280 × 185 × 1857.64Available on request
OXJT120012051200120 W41280 × 185 × 1858.08Available on request
OXJT120014051200140 W41280 × 185 × 1858.23Available on request
OXJT120016051200160 W41280 × 185 × 1858.38Available on request
OXJT120018051200180 W41280 × 185 × 1858.53Available on request
OXJT120020051200200 W41280 × 185 × 1858.68Available on request

Specification tolerance: ±10%
