Floodlight

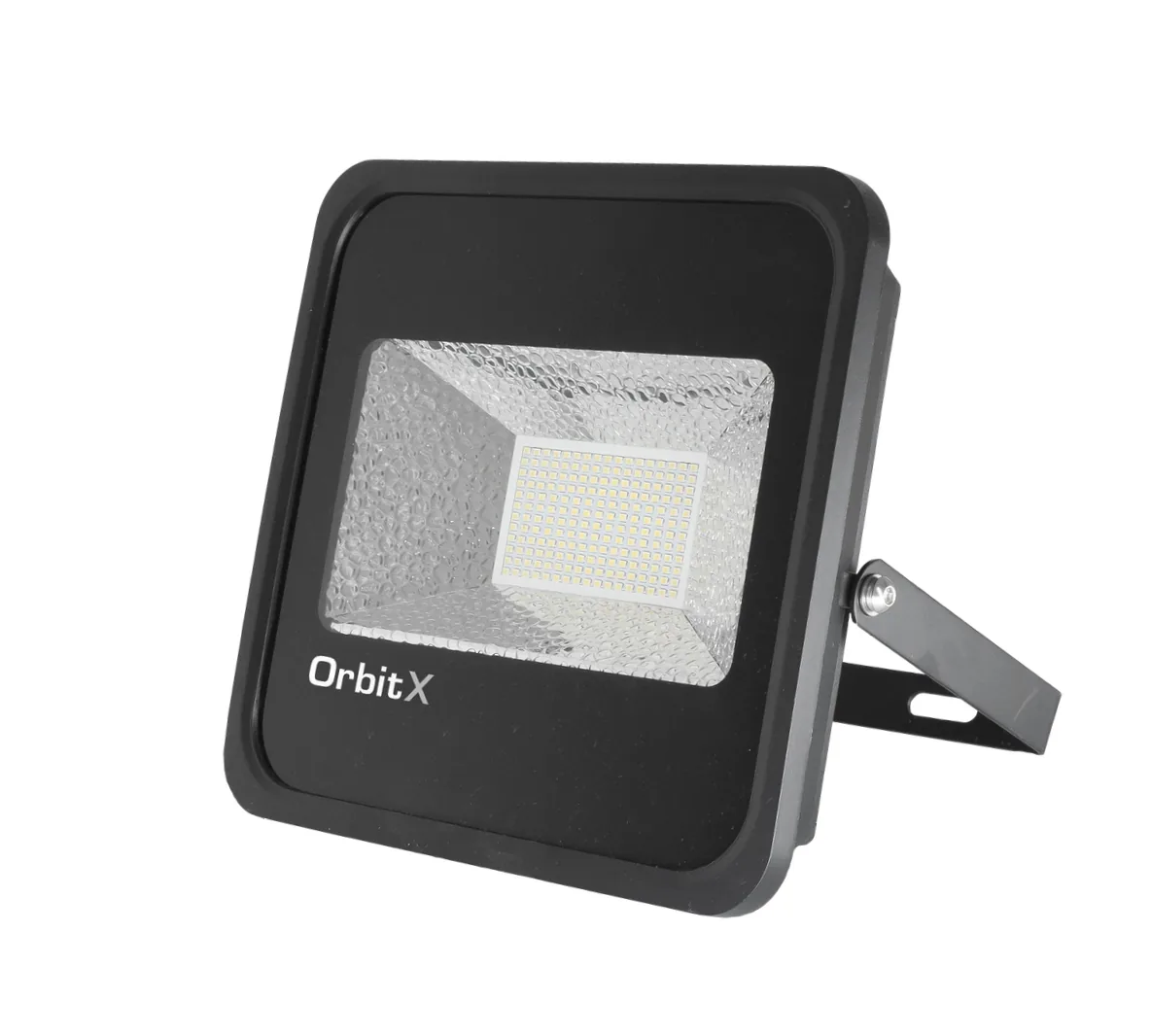

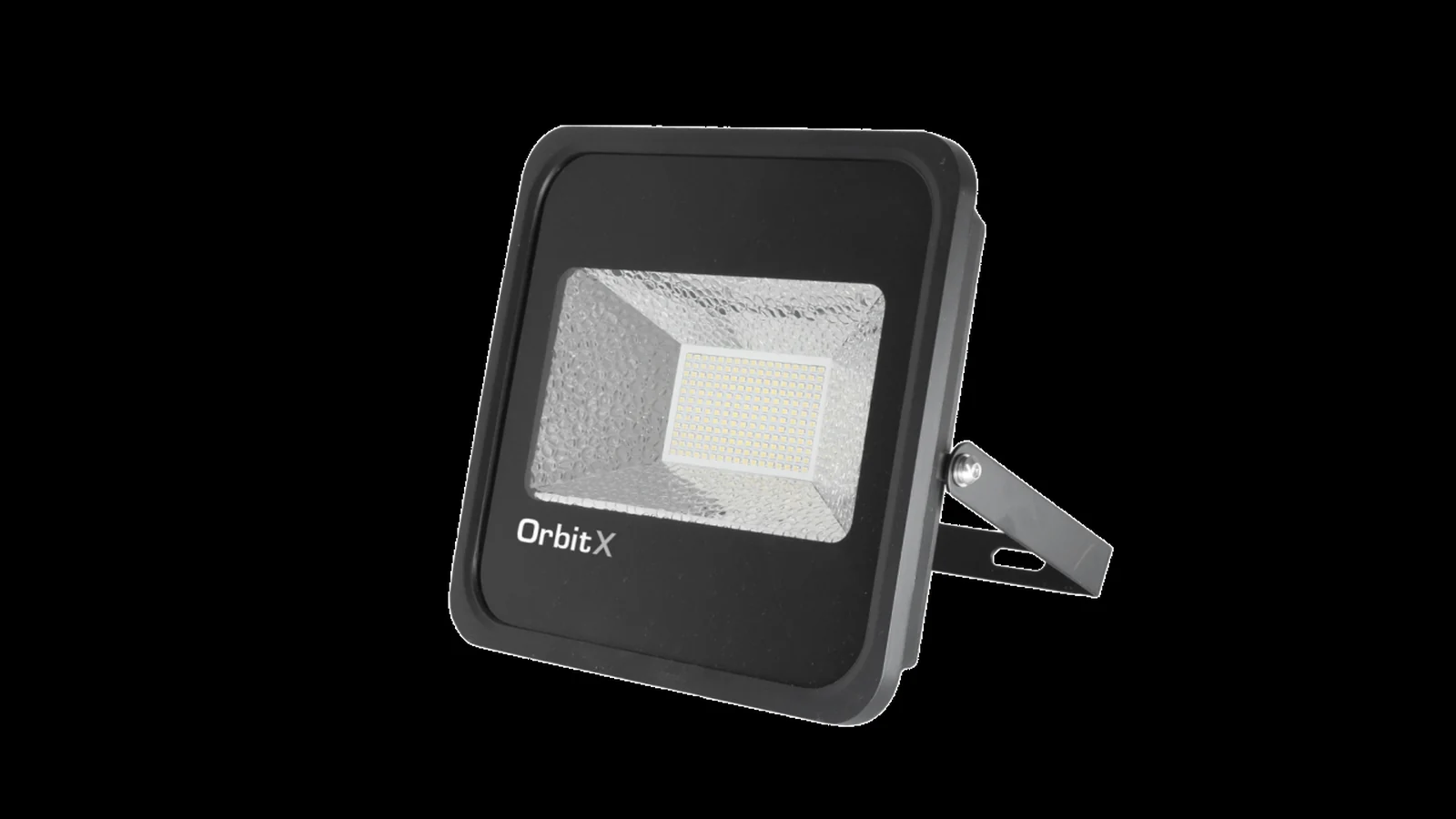

IP65 FLOODLIGHT WITH AUTOMATIC LIGHT SENSOR (ALS)
OrbitX Direct Drive Technology onboard with an integrated automatic light sensor (ALS) for automatic day/night operation. Ideal for security and area lighting.
IP65 RatedIntegrated ALS (Day/Night Sensor)Direct DriveOccupancy Sensor Option
Guarantee & Lifetime
- Operational Guarantee (365d × 12h): 5 years
- Light Output Guarantee (365d × 12h): 3 years
- Nominal Lifetime (L70): 50,000 hours
- Testing Standards: IES LM-80, TM-21
Photometric Data
- Luminous Efficacy: 90 lm/W
- Correlated Colour Temperature (CCT): 5600K–6500K
- Colour Rendering Index (CRI): 83
- Gamut Area Index (GAI): 86
- Light Quality: Type A compliant (Lighting Research Centre, New York)
- Beam Angle: 120°
Electrical Data
- Power: See Configurations table
- Power Factor: >0.98
- Operating Voltage: 220–240V AC
- Minimum Sustained Voltage: No minimum limit, operational from 200V
- Maximum Sustained Voltage: 250V for 1 minute
- On/Off Switching: Unlimited
- Delay to Full Brightness: Immediate
Temperature
- Max Ambient Temperature (T Ambient): +40°C
- Min Ambient Temperature (T Ambient): 0°C
Safety & Compliance
- Electrical: IEC60598-1, IEC60598-2-5 compliant
- Surge Protection: IEC61000-4-5 — 2000V line-ground, 1000V line-line
- Fire Rating: UL-94 V0 compliant (no flaming droplets)
- IP Rating: IP65
Interference Compliance
- WiFi, Barcode Scanner, Radio Frequency: No interference
- Standards: IEC 61547, SANS 215 (CISPR15) compliant
- Total Harmonic Distortion: IEC 61000-3-2 Class D Compliant
Additional Options
- Occupancy Sensor: Integrated movement sensor available for 10W, 20W and 30W models
Dimensions
138 × 118 × 42 mm
10W / 20W
200 × 182 × 50 mm
30W / 50W
337 × 330 × 95 mm
100W
415 × 354 × 110 mm
200W
Configurations & Performance
| Power (W) | Luminous Flux (lm) |
|---|---|
| 10 | 900 |
| 20 | 1800 |
| 30 | 2700 |
| 50 | 4500 |
| 100 | 9000 |
| 200 | 18000 |
| 400 | 36000 |
Graphs
Light Survival Rate Curve
Time (×1000 h) vs Light Survival (%)
Rate of Reduction in Light Output (L70)
Time (×1000 h) vs Lumen Output (%)
Type A Lighting*
Colour Rendering Index (CRI) vs Gamut Area Index (GAI)
*Type A Lighting as defined by the Lighting Research Centre, New York
Spectral Power Distribution (SPD)
Wavelength (nm) vs Relative Power
Model Codes & Packaging
| Model Code | Power Rating | Units/Box | Box Dimensions (l × w × h mm) | Weight (kg) |
|---|---|---|---|---|
| OXFL106 | 10 W | 1 | 138 × 118 × 42 | 0.43 |
| OXFL206 | 20 W | 1 | 138 × 118 × 42 | — |
| OXFL306 | 30 W | 1 | 200 × 182 × 50 | 0.84 |
| OXFL506 | 50 W | 1 | 200 × 182 × 50 | 0.84 |
| OXFL1006 | 100 W | 1 | 337 × 330 × 95 | 2.44 |
| OXFL2006 | 200 W | 1 | 415 × 354 × 110 | 4.74 |
| OXFL4006 | 400 W | 1 | — | — |
Specification tolerance: ±10%
